3B Scientific® Ultrasonic Echoscope
Use For Multiple Experiments.
- Recording and measurement software
- Multiple probes available
Operational device for conducting ultrasonic experiments in reflection mode (pulse echo) or in through-transmission mode with ultrasonic probes 1 MHz , 2 MHz and 4 MHz . With the built-in transmission and receiving unit, time gain control (TGC), integrated analogue-digital converter and microprocessor for connection to the measuring and evaluating computer via the USB interface. Connection of the ultrasonic probes via robust snap-in sockets with automatic probe recognition. Compensation for losses of intensity in ultrasonic sound pulses passing through solid or liquid bodies by means of TGC with selectable threshold, start point, end point and TGC ramp. The most important function signals (trigger, TGC, A-scan signal (amplitude signal) and ultrasound signal) are available via BNC sockets on the front of the device.
Includes measurement and evaluation software for Windows operating systems. Screen display of the ultrasound signals (echogram) and the simultaneous TGC signal, whereby the A-scan signal and ultrasound signal can be recorded individually or both simultaneously in the echogram as a function of time or penetration depth. Display of all currently set system parameters (operating mode, transmission level, gain, connected ultrasound probes) calculation of frequency and cepstrum of ultrasound signal (FFT), depiction of 2-dimensional ultrasonic images (B-image) and the time characteristic of time motion reflection layers (time-motion methods).
Experiment Topics:
Propagation of longitudinal and transverse ultrasonic waves in solid bodies
Determining velocity of longitudinal and transverse ultrasonic waves in solid bodies
Determination of shear modulus, modulus of elasticity and Poisson number
Attenuation of sound in solid bodies and liquids
Frequency dependence of sound attenuation
Time-dependent gain
Frequency dependence of resolution
Recording brightness images
Recording ultrasonic echoes from moving boundaries (time-motion mode)
Measurement of anomalies

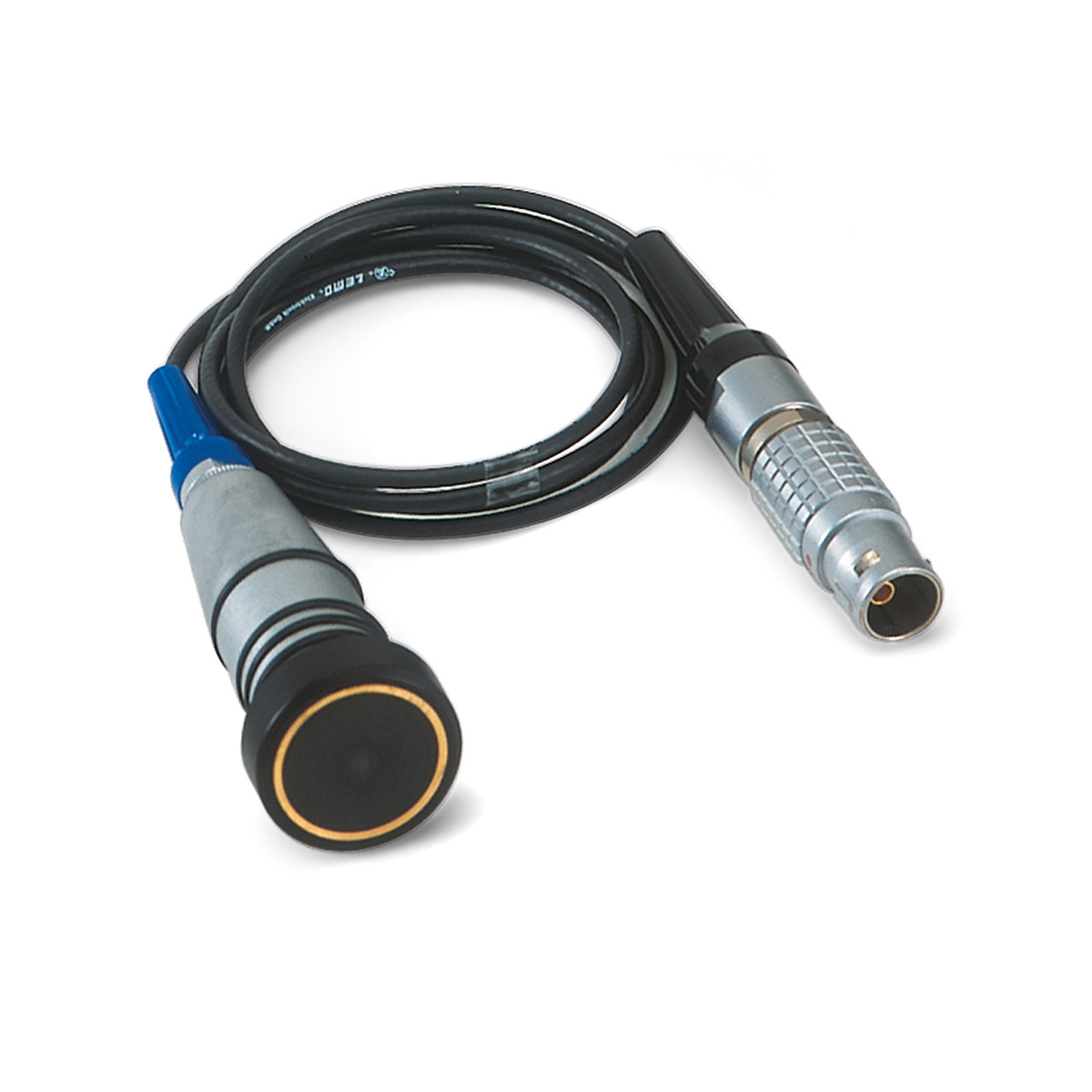

Ordering information: Probes are not included with the echoscope and must be purchased separately.
Use For Multiple Experiments.
- Recording and measurement software
- Multiple probes available
Operational device for conducting ultrasonic experiments in reflection mode (pulse echo) or in through-transmission mode with ultrasonic probes 1 MHz , 2 MHz and 4 MHz . With the built-in transmission and receiving unit, time gain control (TGC), integrated analogue-digital converter and microprocessor for connection to the measuring and evaluating computer via the USB interface. Connection of the ultrasonic probes via robust snap-in sockets with automatic probe recognition. Compensation for losses of intensity in ultrasonic sound pulses passing through solid or liquid bodies by means of TGC with selectable threshold, start point, end point and TGC ramp. The most important function signals (trigger, TGC, A-scan signal (amplitude signal) and ultrasound signal) are available via BNC sockets on the front of the device.
Includes measurement and evaluation software for Windows operating systems. Screen display of the ultrasound signals (echogram) and the simultaneous TGC signal, whereby the A-scan signal and ultrasound signal can be recorded individually or both simultaneously in the echogram as a function of time or penetration depth. Display of all currently set system parameters (operating mode, transmission level, gain, connected ultrasound probes) calculation of frequency and cepstrum of ultrasound signal (FFT), depiction of 2-dimensional ultrasonic images (B-image) and the time characteristic of time motion reflection layers (time-motion methods).
Experiment Topics:
Propagation of longitudinal and transverse ultrasonic waves in solid bodies
Determining velocity of longitudinal and transverse ultrasonic waves in solid bodies
Determination of shear modulus, modulus of elasticity and Poisson number
Attenuation of sound in solid bodies and liquids
Frequency dependence of sound attenuation
Time-dependent gain
Frequency dependence of resolution
Recording brightness images
Recording ultrasonic echoes from moving boundaries (time-motion mode)
Measurement of anomalies
Ordering information: Probes are not included with the echoscope and must be purchased separately.
Documents
Manual Echoscope
Manual
- Catalog No:
- 470233-730
- 470233-732
- 470233-734
- 470233-736
- Output:
- TGC, trigger, ultrasound signal, A-scan signal via a BNC socket in each case (front)
- Power consumption:
- ~ 20 VA
- Transmission range:
- Transmission signal: Dirac pulse (<1 µs, 0 - 300 V);
Transmission power: 0 - 30 dB, in 5 dB steps
- Signal output:
- 10, 25, 50 and 100 MHz (Scanning rate)
Product Family Options
- DescriptionFrequencyVoltageDimensions
- Echoscope1 - 5 MHz100 – 240 V, 50/60 Hz~ 226×169×325 mm³Each$18,945.79: 1018616
Specifications
Cat. No.470233-730OutputTGC, trigger, ultrasound signal, A-scan signal via a BNC socket in each case (front)Power consumption~ 20 VATransmission rangeTransmission signal: Dirac pulse (<1 µs, 0 - 300 V);
Transmission power: 0 - 30 dB, in 5 dB stepsSignal output10, 25, 50 and 100 MHz (Scanning rate) - : 1018617
Specifications
Cat. No.470233-732OutputPower consumptionTransmission rangeSignal output - : 1018618
Specifications
Cat. No.470233-734OutputPower consumptionTransmission rangeSignal output - : 1018619
Specifications
Cat. No.470233-736OutputPower consumptionTransmission rangeSignal output
