Motic Moticam A Class, Microscope Cameras, National Optical
About this item
Ideal for in-person or distance learning and instruction.
- sCMOS sensor
- Fast frame rates
- MotiConnect software

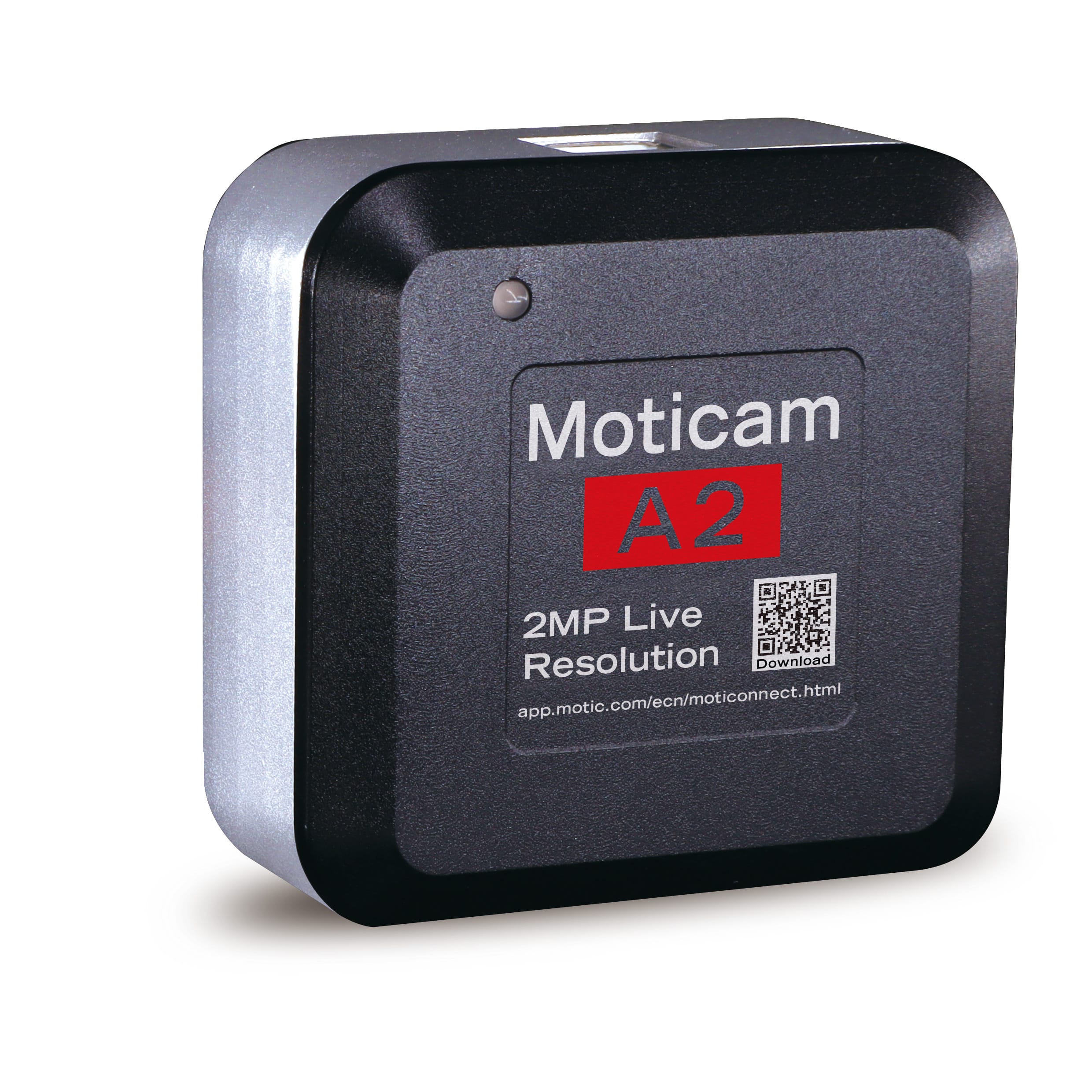

The Moticam A-Line follows the Motic All-In-One Box methodology. This means that with the included focusable lenses, eyepiece adapters and glass calibration slide, you can convert almost any conventional microscope into a digital microscope.
This line of cameras feature Motic's state-of-the-art cMOS imaging units packed in high quality metal housing. The on-board UVC technology means that you no longer have to search for or install a specific driver. These cameras work blazing fast whether you are using USB2 or USB3 ports.
Delivery information: Supplied with calibration slide, USB cable (1.8 m), and eyepiece adapters for binocular and monocular microscopes (30 and 30.5 mm ø).
3 Options Available Below
Product Details & Documents
Ideal for in-person or distance learning and instruction.
- sCMOS sensor
- Fast frame rates
- MotiConnect software
The Moticam A-Line follows the Motic All-In-One Box methodology. This means that with the included focusable lenses, eyepiece adapters and glass calibration slide, you can convert almost any conventional microscope into a digital microscope.
This line of cameras feature Motic's state-of-the-art cMOS imaging units packed in high quality metal housing. The on-board UVC technology means that you no longer have to search for or install a specific driver. These cameras work blazing fast whether you are using USB2 or USB3 ports.
Delivery information: Supplied with calibration slide, USB cable (1.8 m), and eyepiece adapters for binocular and monocular microscopes (30 and 30.5 mm ø).
Documents
Specifications for Product Family
Specifications
- Catalog No:
- 470336-478
- 470336-480
- 470336-482
- Model:
- A1
- A2
- A5
- Sensor size:
- 1/3.1"
- 1/3.1"
- 1/2.8"
- Pixels (W×H):
- 1024×768
- 1920×1080
- 2592×1944
- Pixel size:
- 4.1×4.1 μm
- 2.7×2.7 μm
- 2×2 μm
- Frame rate:
- 30 fps
- 30 fps
- 30 fps
- Supported OS:
- Windows 10
macOS - Windows 10
macOS - Windows 10
macOS
Specifications
Product Family Options
Product Information
- ModelResolutionSensor typeAvailabilityPrice
- 470336-478Digital cameraSupplier Number: D-MOTICAM A1Specifications:
More
Specifications
Cat. No.470336-478ModelA1Sensor size1/3.1"Pixels (W×H)1024×768Pixel size4.1×4.1 μmFrame rate30 fpsSupported OSWindows 10
macOS - 470336-480Digital cameraSupplier Number: D-MOTICAM A2Specifications:
More
Specifications
Cat. No.470336-480ModelA2Sensor size1/3.1"Pixels (W×H)1920×1080Pixel size2.7×2.7 μmFrame rate30 fpsSupported OSWindows 10
macOS - 470336-482Digital cameraSupplier Number: D-MOTICAM A5Specifications:
More
Specifications
Cat. No.470336-482ModelA5Sensor size1/2.8"Pixels (W×H)2592×1944Pixel size2×2 μmFrame rate30 fpsSupported OSWindows 10
macOS
