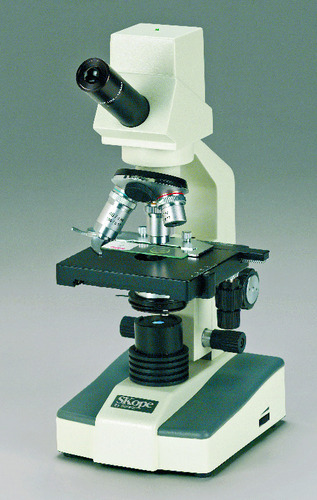

Boreal Science Digital Compound Microscopes
About this item
In these digital compound instruments, a video camera is built into the traditional microscope chassis.
- Motic image editing software included
- Smartboard compatible
- One-year manufacturer's warranty on camera
- Boreal lifetime warranty on microscope chassis
- VAC: 100 - 120
These rugged digital microscopes offer high resolutions. One power supply operates both the microscope and camera. The included, user-friendly Motic image editing software lets you capture images in JPG, TIFF, MIG, and BMP formats and movies in AVI format.
Digital and Digital2000 microscopes connect to a computer via a USB port. Each microscope comes with all-connecting cables.
Ordering information: This product includes a manufacturer's warranty.
Product Details
In these digital compound instruments, a video camera is built into the traditional microscope chassis.
- Motic image editing software included
- Smartboard compatible
- One-year manufacturer's warranty on camera
- Boreal lifetime warranty on microscope chassis
- VAC: 100 - 120
These rugged digital microscopes offer high resolutions. One power supply operates both the microscope and camera. The included, user-friendly Motic image editing software lets you capture images in JPG, TIFF, MIG, and BMP formats and movies in AVI format.
Digital and Digital2000 microscopes connect to a computer via a USB port. Each microscope comes with all-connecting cables.
Ordering information: This product includes a manufacturer's warranty.
Documents
Documents
Manual Boreal Microscope
Manual
Motic Software_15
Product Literature
Specifications for Product Family
Specifications
- Catalog No:
- 470145-726
- 470145-722
- 470222-452
- Model:
- 470145-726
- 470145-722
- 470222-452
- Stage:
- 110×120 mm (4⅜×4¾") stage, with locked-on spring mounted stage clips, drilled and tapped to accept optional mechanical stage
- 120×120 mm (4⅜×4⅜"), Built-in mechanical stage with low-position coaxial x-y controls
- Large 140×135 mm (5½x5-5/16") rackless mechanical stage
- Electrical:
- 110 V
- 100 - 120 V
- 100 - 120 V
- W×D×H:
- 5×6½×14½"
- 5×6½×14½"
- 7¼×9¼×16½"
Specifications
Catalog No | Model | 470145-726 | 470145-722 | 470222-452 | Stage | 110×120 mm (4⅜×4¾") stage, with locked-on spring mounted stage clips, drilled and tapped to accept optional mechanical stage | 120×120 mm (4⅜×4⅜"), Built-in mechanical stage with low-position coaxial x-y controls | Large 140×135 mm (5½x5-5/16") rackless mechanical stage | Electrical | 110 V | 100 - 120 V | 100 - 120 V | W×D×H | 5×6½×14½" | 5×6½×14½" | 7¼×9¼×16½" |
|---|
Product Family Options
Product Information
- MagnificationIlluminationAvailabilityPrice
- 470145-726Boreal monocular digital 5 MP microscope4×, 10×, 40×, 195BLED cordlessSupplier Number: 5584700Specifications:
More
- 470145-722Boreal monocular digital 5 MP microscope4×, 10×, 40×, 195BHalogenSupplier Number: 1100400200075Specifications:
More
- 470222-452Boreal trinocular digital 5 MP microscope, with 30° inclined forward-facing trinocular head4×, 10×, 40×R, 100×RLEDSupplier Number: DC5-169-ASCSpecifications:
More
