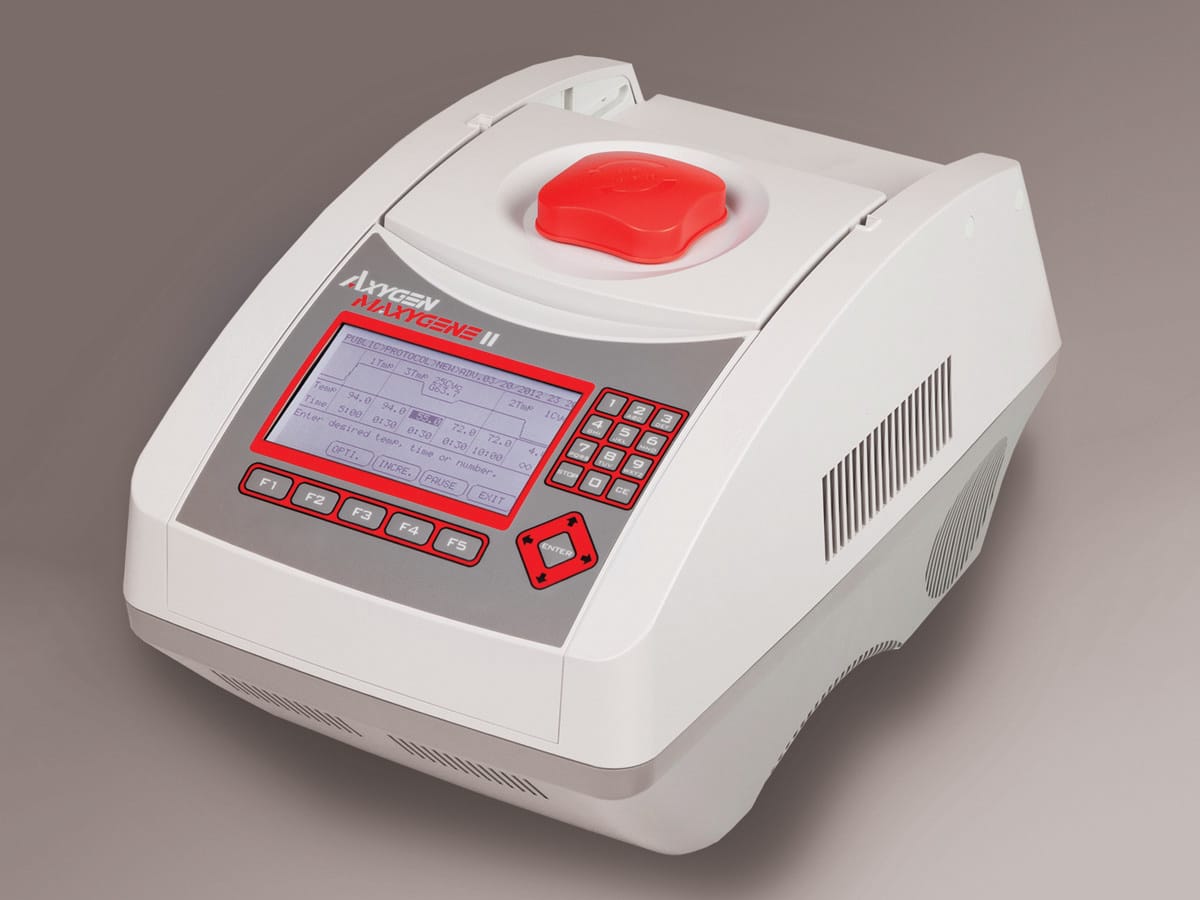

Axygen® MaxyGene II Thermal Cycler, Corning
About this item
The Axygen® MaxyGene II is an ideal multi-purpose thermal cycler for the basic research laboratory. The MaxyGene II Thermal Cycler is simple to program, compact in design and built to perform.
- Flexible programming and rapid run times
- Ramping rates up to 5 °C/sec
- Simple user interface
- Large backlit LCD with graphical display
- Large alphanumeric keys for protocol entry, function keys for screen selections and arrow keys for easy software navigation
- Adjustable heated lid accommodates strips, tubes and microplates
- Pre-programmed standard protocols
The thermal cycler makes method optimisation affordable and provides consistent, reliable results. It also features Precision Thermal Control, rapid heating and cooling of the precision-machined sample block by six independently temperature controlled Peltier modules. A sophisticated algorithm program calculates sample temperature and triggers heating and cooling accordingly, minimising over- and under-shooting. The MaxyGene II Thermal Cycler may be programmed to operate between one and six different annealing temperatures across the block. The thermal cycler provides improved throughput by reducing time and simplifies workflow by reducing steps.
A variety of applications from single temperature soaks to sophisticated multistep programs can be performed with the MaxyGene II. All of these are easily set up. The time or temperature of a cycling step can be automatically increased or decreased during successive cycles. This is useful for 'touchdown' applications and for extending annealing times as enzyme is depleted. Programs may also be paused while running. During operation, actual times and temperatures are displayed. Estimated run times are automatically calculated and a log of the last run can be displayed or downloaded to a printer or PC.
Well spacing in the MaxyGene II block is compatible with both thin walled thermal cycling plates and 0.2 ml strip tubes. For best fit and performance, the use of Axygen® thin walled polypropylene plates and tubes are recommended. Individual 0.2 ml tubes may also be used.
Certifications: ETL Certified and CSA compliant.
2 Options Available Below
Product Details & Documents
The Axygen® MaxyGene II is an ideal multi-purpose thermal cycler for the basic research laboratory. The MaxyGene II Thermal Cycler is simple to program, compact in design and built to perform.
- Flexible programming and rapid run times
- Ramping rates up to 5 °C/sec
- Simple user interface
- Large backlit LCD with graphical display
- Large alphanumeric keys for protocol entry, function keys for screen selections and arrow keys for easy software navigation
- Adjustable heated lid accommodates strips, tubes and microplates
- Pre-programmed standard protocols
The thermal cycler makes method optimisation affordable and provides consistent, reliable results. It also features Precision Thermal Control, rapid heating and cooling of the precision-machined sample block by six independently temperature controlled Peltier modules. A sophisticated algorithm program calculates sample temperature and triggers heating and cooling accordingly, minimising over- and under-shooting. The MaxyGene II Thermal Cycler may be programmed to operate between one and six different annealing temperatures across the block. The thermal cycler provides improved throughput by reducing time and simplifies workflow by reducing steps.
A variety of applications from single temperature soaks to sophisticated multistep programs can be performed with the MaxyGene II. All of these are easily set up. The time or temperature of a cycling step can be automatically increased or decreased during successive cycles. This is useful for 'touchdown' applications and for extending annealing times as enzyme is depleted. Programs may also be paused while running. During operation, actual times and temperatures are displayed. Estimated run times are automatically calculated and a log of the last run can be displayed or downloaded to a printer or PC.
Well spacing in the MaxyGene II block is compatible with both thin walled thermal cycling plates and 0.2 ml strip tubes. For best fit and performance, the use of Axygen® thin walled polypropylene plates and tubes are recommended. Individual 0.2 ml tubes may also be used.
Certifications: ETL Certified and CSA compliant.
Specifications for Product Family
Specifications
- Catalog No:
- 89217-556
- 89217-558
- Cooling ramp rate:
- 3,5 °C/s
- 3,5 °C/s
- Gradient:
- +
- +
- Heating ramp rate:
- 5 °C/s
- 5 °C/s
- Sample capacity:
- 1 x 96 well plate, 0.2 mL tubes, or 0.2 mL strips
- 1 x 96 well plate, 0.2 mL tubes, or 0.2 mL strips
- Temperature accuracy:
- ±0.5°C
- ±0.5°C
- Temperature range:
- 4°C to 99.9° C
- 4°C to 99.9° C
- Temperature uniformity:
- <±0.5°C
- <±0.5°C
- W×D×H:
- 24 x 42 x 25 cm (94/9 x 161/2 x 95/6")
- 24 x 42 x 25 cm (94/9 x 161/2 x 95/6")
- Weight:
- 9 Kg (19.8 lbs.)
- 9 Kg (19.8 lbs.)
Specifications
Product Family Options
Product Information
- ElectricalAvailabilityPrice
- 89217-556Axygen® MaxyGene™ II thermal cycler with 96 well block, complete unitAxygen® MaxyGene™ II thermal cycler with 96 well block, complete unit230 V, 50/60 HzLog in for availabilityEach$7,110.00Supplier Number: THERM-1000Specifications:
More
Specifications
Cat. No.89217-556Cooling ramp rate3,5 °C/sGradient+Heating ramp rate5 °C/sSample capacity1 x 96 well plate, 0.2 mL tubes, or 0.2 mL stripsTemperature accuracy±0.5°CTemperature range4°C to 99.9° CTemperature uniformity<±0.5°CW×D×H24 x 42 x 25 cm (94/9 x 161/2 x 95/6")Weight9 Kg (19.8 lbs.) - 89217-558Axygen® MaxyGene™ II thermal cycler with 96 well block, complete unitAxygen® MaxyGene™ II thermal cycler with 96 well block, complete unit115 V, 50/60 HzLog in for availabilityEach$6,330.00Supplier Number: THERM-1001Specifications:Product available on GSA Advantage®
More
Specifications
Cat. No.89217-558Cooling ramp rate3,5 °C/sGradient+Heating ramp rate5 °C/sSample capacity1 x 96 well plate, 0.2 mL tubes, or 0.2 mL stripsTemperature accuracy±0.5°CTemperature range4°C to 99.9° CTemperature uniformity<±0.5°CW×D×H24 x 42 x 25 cm (94/9 x 161/2 x 95/6")Weight9 Kg (19.8 lbs.)Product available on GSA Advantage®
